EX3320K
Xem ảnh lớn


 EX3320K

  Xuất xứ: ZLPOWER

  Bảo hành : 12 Tháng

  Vận chuyển : Miễn phí trong nội thành Hà Nội

|
|
|
|
|
|
|
|
|
|
|
|

8,500 $
204,000,000 VNĐ
(Giá chưa bao gồm VAT)


Chat với nhân viên phụ trách:

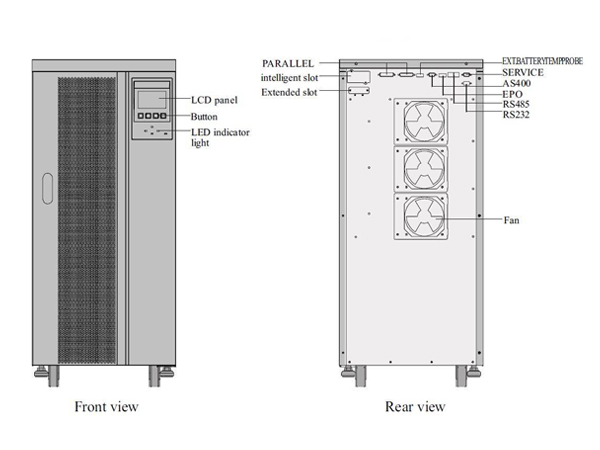

http://zlpower.com.vn/upload/201394103958.jpg

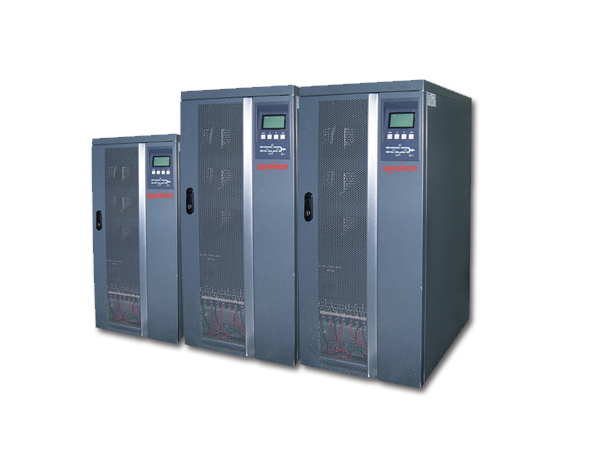

http://zlpower.com.vn/upload/2013102211578.jpg

APPLICATION:

Three phase High frequency online UPS EX3320K-EX3380K is IGBT rectified uninterruptible power supply 20KVA to 80KVA, Three phase 4line and ground, 0.8 output power factor and DSP chip, is applicable to small and medium-sized data centers, network management center, computer rooms for enterprises, or able to provide solutions to conditions like voltage instantaneous drop-off or damping concussion, high-voltage pulse, voltage pulsation, surge voltage, harmonic distortion, and frequency fluctuation.

Main Features:

*Excellent performance in industrial environment protection
*N+X parallel redundancy upto 6 units (compatible to battery share in the parallel mode)
*Intelligent management of battery charging and discharging
*Frontal-board LCD display panel operation and maintenance
*Twin-channel line input
*Remote monitoring
*High-efficient DSP chip
*Outstanding electric property
*Flexible battery arrangement



TECHNICAL SPECIFICATION

Model

EX3320K

UPS ZLPOWER EX3320K

Rated Capacity

20KVA/16KW

TECHNOLOGY



Double conversion online type

Input

Voltage range

210 - 475 VAC

Phase

Three phase 4 line + each line

Frequency

40 - 70 Hz

THDI

< 3%

Input power factor

>0.99

Twin - chanel Line input

Yes





Battery

Type ZLPOWER

Valve-regulated lead-acid storage battery

Backup-time full load

Depended by external battery bank

Output

Voltage

380VAC / 220 VAC

Phase

Three phase 4 line + each line

Frequency

50/60Hz

Rate output Power Factor

0.8

Overload capacity

125% maintain 10minutes,150% maintain 1minutes

Distortion

Linear load

Bypass



Automatic transfer

Efficiency

Line Input mode

93%

BAT Mode

93%

ECO Mode

98%

Intelligent Speed Control of Fan



Yes

Display Device

LCD

I / P & O / P voltage & frequency, battery voltage, battery capacity, load, fault code



LED

The operation state of UPS



Alarm

battery mode, overload, fault

Warning Devices

Two ways of alerting: BUZZER sound, lamp signal,

Communication Interface

SNMP,RS232, AS400, RS485, Service, EPO, BAT temperature compensation, Intelligent Slot

Operation

Temperature

0- 40°C

Environment

 Humidity

< 95% (non condesing)

Weight

Net weight (include transformer)

82Kg / 208Kg



Gross weight (include transformer)

122Kg / 248Kg

Size W*D*H (mm) UPS machine

420 x 643 x 956



EMC:   GB7260.2 / IEC 6240-2

            GB/T 17626.2-5 / IEC 61000-4-2-5

SAFETY: 4943



APPLICATION:

 EX33 high frequency Online UPS is applicable to small and medium-sized data centers, network management center, computer rooms for enterprises, or able to provide solutions to conditions like voltage instantaneous drop-off or damping concussion, high-voltage pulse, voltage pulsation, surge voltage, harmonic distortion, and frequency fluctuation.



Each single phase of the EX33 series UPS is converted to DC through an individual PFC circuit and then transferred to AC through Inverter for output. At the same time, a separate controller is provided for the real time control and data collection of PFC circuit so that the whole system can operate more harmonious or feedback the system state to the customer more promptly. In addition, the controlling of battery charging can extend the battery’s serve lifetime effectively and the twin-channel line input improves the system’s reliability.

Furthermore, the series product is enhanced with excellent performance in protection level, which ensures the stability of UPS working in industrial environment with large dusts.

KEY FEATURES:

 Excellent performance in industrial environment protection

Just with the standard product, IP21 protection level (protecting the machine from the intrusion of solid material with the diameter larger than 12mm or the water drops) is achieved. If a higher protection level is required, the optional dust-proof accessories can help to increase the protection level in industrial environment and safeguard the UPS’s security of operation in bad environment.



N+X parallel redundancy (compatible to battery share in the parallel mode)

The maximum of the inbuilt parallel mode is 8 UPS without any other external accessories, which helps the customer to extend the system capacity with low cost. N stands for the minimum amount of UPS in the load and X stands for the amount of redundant UPS in the system. The bigger the number of X is, the higher the reliability of the system.

The advanced controlling strategy is adopted to save the customer’s investment by sharing a battery unit in the parallel redundancy mode.





Intelligent management of battery charging and discharging

The CPU- controlled advanced intelligent charging of battery enables the UPS’s charger to rectify the charging parameter, and provide the optimum charging modes in the answer to the environment, types and amounts of cells, and the using condition of the battery. The scientific charging mode extends the battery’s service lifetime. The optional addition to charging units shortens the time duration for the battery units recharging.



Frontal-board operation and maintenance

The full consideration of customer’s efficiency in using the UPS is embodied in the module design and frontal-board maintenance, which saves time for repairing and improves the machine’s usability.



Twin-channel line input

The UPS provides customer security in power supply with intelligent choice between two-line input and one-line input according to the actual condition.



Remote monitoring

Communication interfaces like RS232/RS485, Intelligent Slot are provided and CMC, WebPower cards of ZLPOWER Company are available for the realization of remote management and monitoring. In addition, the optional AS400 card is suitable for the connection of stem point, which enriches the customer’s choice out of the monitoring demand.



High-efficient DSP chip

The digital Ti DSP controlling chip provides precise data processing capability with excellent performance in output and reliability.



Outstanding electric property

The efficiency of the machines is as high as 93% and reaches over 98% in the ECO mode, which can help to reduce the power loss of UPS.

The EX33 series UPS is designed to China’s power grid with a broader range of input voltage from 210VAC to 475VAC, which ensures that it can be applicable in the awful grid environment or different power supple equipment like generator with its extraordinary input frequency.

The factor that the technology of IGBT FM intelligent rectifier and inverter is used , the input power factor is as high as 0.99, and the input current harmonic wave is as low as 3% makes the output voltage electric property more extraordinary.

Powerful overload capacity: the UPS can work normally under the condition of 110-125% load to 10 minutes, and 1 minute in the condition of ;125-150 load. It also has the output short protection capability.



Flexible arrangement

Flexiblebatteryarrangement of the amount of accumulators in each battery (32, 30, or 28) can be achieved through the parameter resetting in the Industry EX33 series UPS, which effectively solves the question that the damage of some individual cell may influence the life of the whole unit by eliminating the damaged ones from the unit in the process of using UPS
